CJX2E系列交流接触器

适用范围 Applicable scope

       CJX2E系列交流接触器（以下简称接触器）适用于交流50Hz或60Hz、电压至95A的电路中，供远距离接通与分断电路及频繁起动、控制交流电动机，接触器还可组装成积木式辅助触头组、空气延时头，机械联锁机构等部件，组成延时接触器、可逆接触器、星三角起动器并且可以和热继电器直接插接安装组成电磁起动器.

       CJX2E series AC contactors (simplified AC contactor in the following)are suitable for using 50Hz or 60Hz rated rated voltage up to 660V rated current up to 95A. It is mainly used for making/breaking electric circuits ata long distance and for frequent starting/stopping and control AC motors. Com-bined with the auxiliary contact group, air delayer, machine inter locking device etc. It is combined  into the delay contactor. Mechanicat inter locking contactor startriangle starter with the thermal relay.lt is

combinde into the tle electromagnetic starter mechanical.

型号及其含义 Model and its meaning

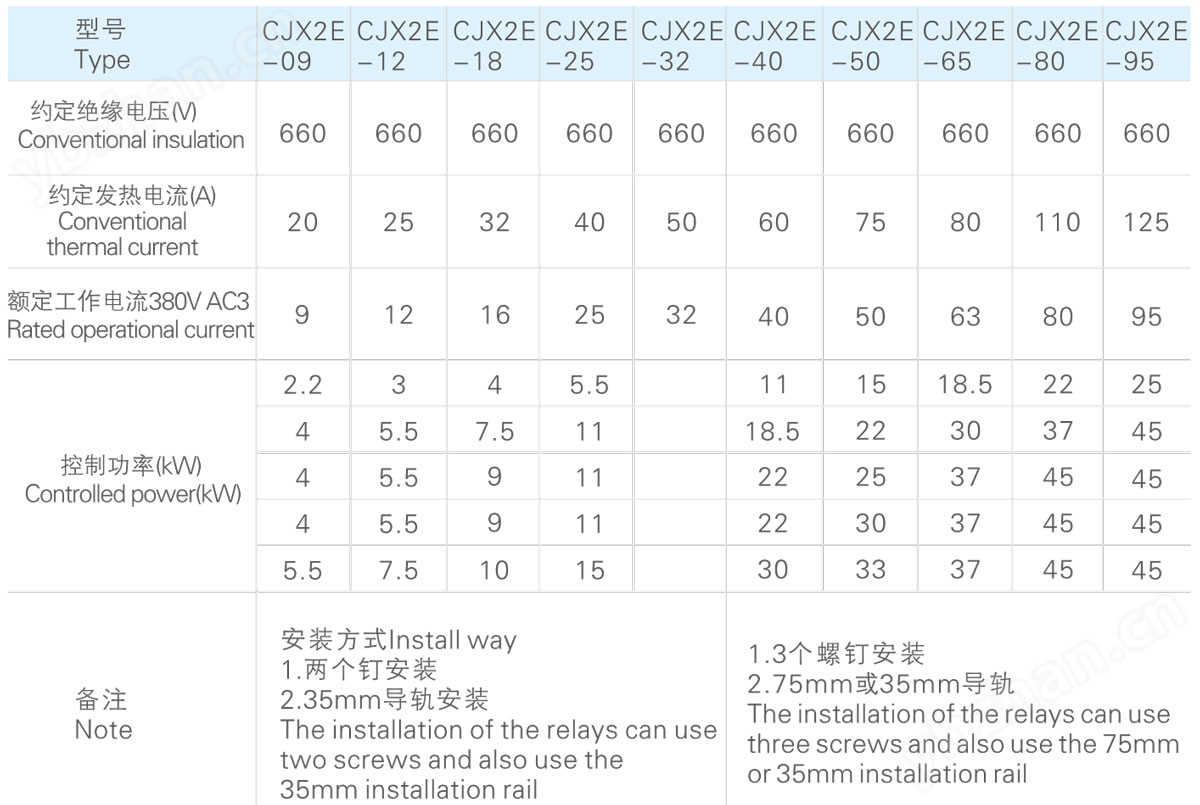

主要技术参数 The main technical parameters

正常工作条件和安装条件 Normal working conditions and installation conditions

◇周围空气温度为：-5℃~+40℃，24小时内其平均值不超过+35℃。

◇海拔：不超过2000m。

◇大气条件：在+40℃时大气相对湿度不超过50%，在较低温度下可以有较高的相对湿度，最湿月的平均温度不超过+25℃，该月的平均相对湿度不超过90%。并考虑因温度变化发生在产品的上凝露。

◇污染等级：3级。

◇安装类别：III类。

◇安装条件：安装面与垂直面倾斜度大于±50°。

◇冲击振动：产品应安装和使用在无显著摇动，冲击和振动的地方。

◇ The ambient air temperature is: -5℃ ~ +40℃, 24hours its average does not exceed +35℃.

◇ Elevation: no more than 2000 meters.

◇ Atmospheric conditions: At +40℃ when the relative humidity of not more than 50%, at a lower temperature can have a higher relative humidity, the wettest month average minimum temperature does not exceed +25℃, the average monthly maximum relative Humidity does not exceed 90%. And consider the occurrence of temperature due to condensation on the product.

◇ Pollution Level: 3 level.

◇ Installation category: III category.

◇ Installation Conditions: the installation surface and the vertical slope of more than ± 50°.

◇ Shock Vibration: The product should be installed and used where there is no significant shaking, shock and vibration.

外形及安装尺寸 Shape and installation dimensions

订货须知 Ordering instructions

订货时必须指出：

○接触器完整的型号名称。

○线圈的额定工作电压和频率。

○订货台数。

○如需订购标准卡轨，应另行注明。

订货示例：CJX2E-09线圈电压220V、50Hz、10台。

When ordering, you must point out:

○ Contactor complete model name.

○ Rated operating voltage and frequency of coil.

○ Order number.

○ If you need to order the standard rail, please specify separately.

Order example: CJX2E-09 coil voltage 220V, 50Hz, 10 units.
